SEC Shaft Thrust Load Meter
Temperature collection type
The temperature correction type is a stand-alone type with a temperature collection function added.
To avoid the influence of the temperature difference between the shaft and the sensing element, a temperature sensor is installed on the dummy thrust sensor diaphragm and the shaft surface, and the data is corrected by a function of the temperature difference set in advance by measuring the temperature difference between the two versus the sensor frequency.

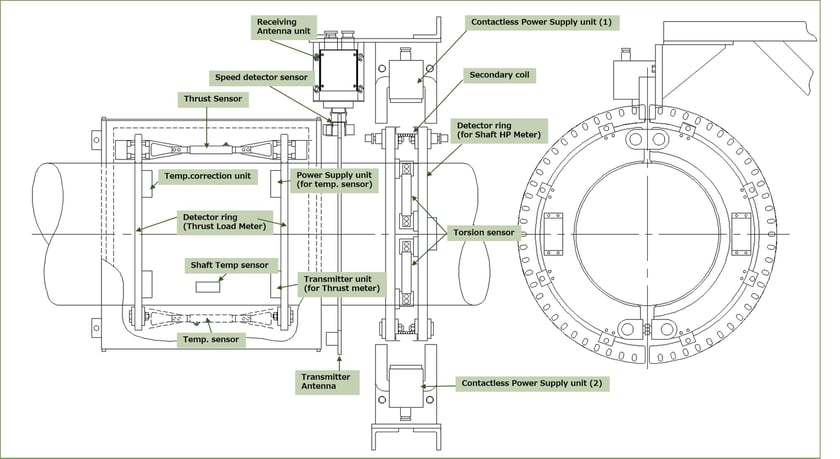

<System composition of Temperature correction type>
![](https://image.jimcdn.com/app/cms/image/transf/dimension=840x10000:format=jpg/path/s2afbcd9a6d67edad/image/i7cadabfcf82c7720/version/1575359618/image.jpg)
