Shaft Horsepower Meter

Data Processing Display unit

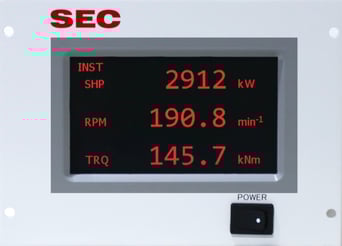

SE104CN (4.3 inches LCD Touch Panel)

Simple screen

Operability improved by touching screen

w168 x H123 x D272 (mm) /3.5kg
w168 x H123 x D272 (mm) /3.5kg


・Improved operability with touch panel

・Output signal type selectable

 from analog, RS422/485

・Display items can be specified arbitrarily

・Brightness and font color can be changed


Display Items

・Shaft Horsepower(kW)

・Shaft Speed (min-1)

・Shaft Torque(kNm)

・Shaft Trust (Nm)*option

・Total Power(MWh)*option

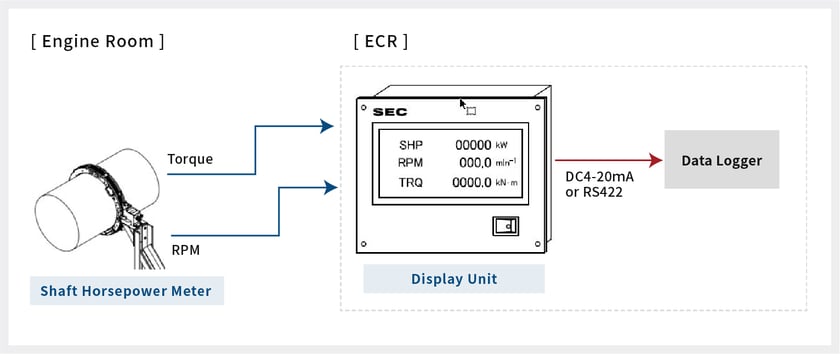

Configuration example
