Engine Combustion Pressure Monitor

Data Logging Analysis Software

The control unit display unit SE203C/S is connected to a personal computer, and combustion data can be logged and analyzed using dedicated software.


In the case of simultaneous measurement for all cylinders, the interval for continuous automatic measurement can be selected from 30 to 600 seconds. One measurement data file is created in CSV format for each measurement, and a folder is created for each date.

<Sample Screen of dedicated software>

PC System requirement:

OS:  Windows 10/8.1 / 7
  (Japanese or English version)

Memory:2GB(64bit)、1GB(32bit)or over

Hard Disk:400MB or over


P-θ drawing

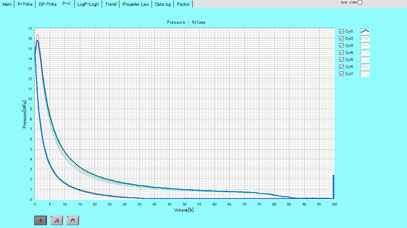

P-V drawing

Sample screen of REPORT

<Numeric screen>


<Pressure vs Crank angle graph>
