Case Study

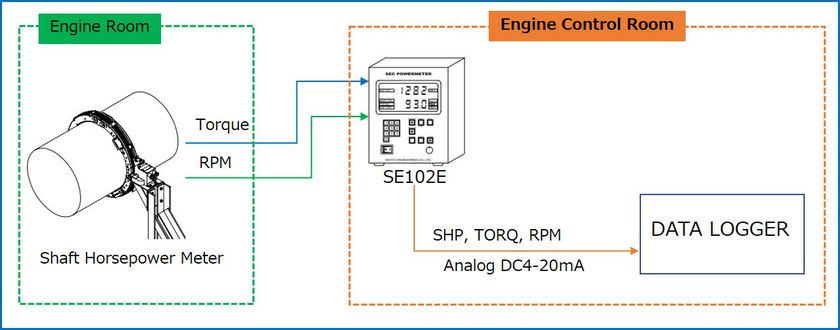

Configuration sample of SE102E use

◆ Display item

  • Shaft horsepower(kW)
  • Shaft Speed(min-1)
  • Shaft Torque(kNm)

◆ Output data (Analog DC4-20mA)

  • Shaft Horsepower(kW)
  • Shaft Speed(min-1)
  • Shaft Torque(kNm)

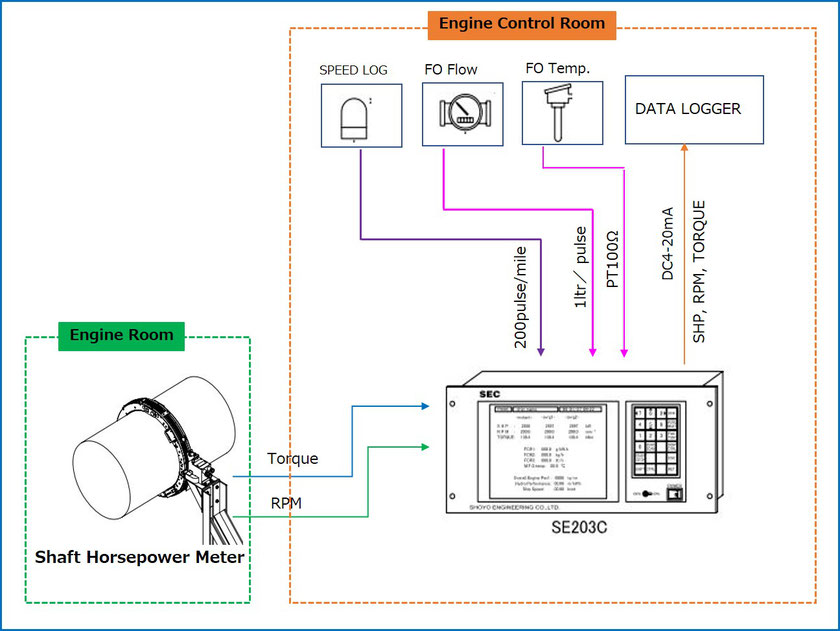

Configuration sample of SE203C use

◆ Display item

  • Shaft Horsepower(kW)
  • Shaft Speed(min-1)
  • Shaft Torque(kNm)
  • M/E FO Consumption(kg/h, ltr/h, g/kW.h)
  • M/E FO Temperature(℃)
  • Ship Speed(knot)
  • Hydrodynamic Performance(m/kW.h)
  • Overall ship performance(kg/nm or nmile/ton)

◆ Output data to Data Logger
       (Analog DC4-20mA)

  • Shaft Horsepower(kW)
  • Shaft Speed(min-1)
  • Shaft Torque(kNm)

◆ Input signal

  • M/E FO Flow(ltr/pulse)
  • FO Temperature(pt100ohm)
  • Speed Log  (200pulse/mile)
